Purane Ghar me Lift Lag Sakti Hai? Retrofit Guide (Dhanbad 2026)

“Bhaiya, hamara ghar 25 saal purana hai — ab mummy-papa ko seedhi chadhne mein takleef hoti hai. Kya purane ghar mein lift lag sakti hai?” Ye sawaal Dhanbad mein humse lagbhag roz poochha jata hai — Bank More ki purani building mein rehne wala parivaar ho, Bartand-Govindpur belt ke 20-30 saal purane makaan hon, ya Jharia side ka ancestral ghar. Aur jawab sun kar logon ko rahat milti hai: haan, purane ghar mein lift lag sakti hai — bas naye makaan se thoda alag tarika hota hai.

Hum Cmax Engineering hain — Dhanbad ki lift company. Is blog mein wahi poora retrofit guide de rahe hain jo hum site survey par customers ko samjhate hain: purane ghar mein lift lagane ke 3 tarike, structure kaise check hota hai, civil work mein kya-kya hota hai, kitna kharcha aata hai (sab figures indicative/Sample), aur wo 5 galtiyan jo log retrofit mein karte hain. Final quotation hamesha free site survey ke baad milti hai.

Short answer: haan, lag sakti hai — 3 cheezein check karni padti hain

Naye makaan mein lift drawing mein pehle se plan hoti hai. Purane ghar mein hum peeche se kaam karte hain — pehle ghar ko dekhte hain, phir lift ka plan banate hain. Site survey mein hum sirf 3 cheezein check karte hain:

1. Structure (ghar kitna majboot hai): Lift ka wazan — cabin, counterweight, drive, aur 4-6 logon ka load — kisi na kisi structure par tikega. Purane gharon mein RCC frame ho ya load-bearing deewarein, dono mein solution hai. Hum dekhte hain ki shaft ka load kahan jayega: zameen par apni foundation, ya building ke columns par.

2. Jagah (shaft kahan banega): Lift ke liye kam se kam 4×4 feet se 5×5 feet ki jagah chahiye hoti hai — seedhi ke beech ka khaali hissa (staircase well), ghar ke bahar ki side wall, ya aangan/balcony ka ek kona. Dhanbad ke purane gharon mein aksar seedhi ke beech mein 3×3 feet ka khaali well hota hai — wahan compact home lift aaraam se baith jati hai.

3. Bijli (power supply): Home lift ko single-phase ya three-phase connection chahiye hota hai, technology ke hisaab se. Purane gharon mein sanctioned load kam hota hai — use badhwana pad sakta hai. Ye bijli department ka kaam hai, hum process mein guide karte hain.

Teeno check ho jayein to 90% purane gharon mein lift lag jati hai. Jo 10% mein nahi lagti, uska kaaran bhi hum survey mein saaf-saaf bata dete hain — andhere mein nahi rakhte.

Tarika 1: Ghar ke andar shaft banana (sabse common)

Ye sabse zyada use hone wala tarika hai. Ghar ke andar kahin na kahin shaft ki jagah nikal aati hai:

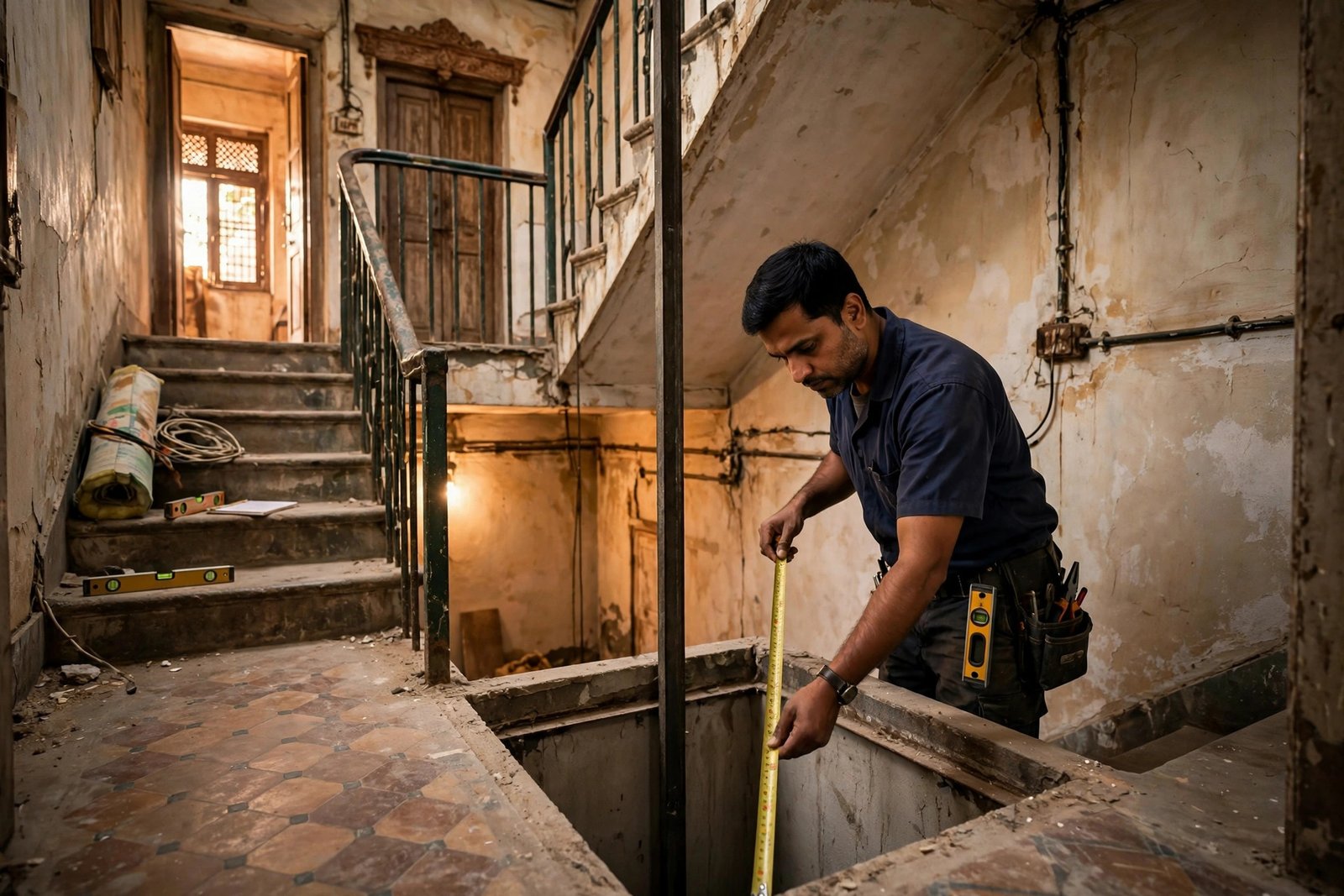

Seedhi ke beech ka well: Bahut se purane gharon mein seedhi U-shape ya L-shape mein bani hoti hai, aur beech mein khaali jagah chhoot jati hai. Wahan MS ya RCC ka shaft khada karke compact hydraulic ya MRL lift lag jati hai. Tod-fod minimum — sirf har floor par landing door ke liye opening kaatni padti hai.

Kamra ya store ka ek hissa: Ground floor par store room, ya har floor par ek chhota sa hissa shaft ke liye de diya jata hai. 4×4 feet ka area kaafi hota hai 2-3 person lift ke liye.

Aangan ya courtyard ka kona: Purane Dhanbad ke gharon mein aksar bada aangan hota hai. Uske ek kone mein glass/steel ka shaft — ghar ko modern look bhi mil jata hai.

Andar shaft banane ka sabse bada fayda: lift mausam se bachi rehti hai, aur ghar ki security mein koi samjhauta nahi. Humne MRL lift ke guide mein samjhaya hai ki bina machine room ke lift purane gharon ke liye kyun best hai — upar alag kamra banane ki zaroorat hi nahi padti.

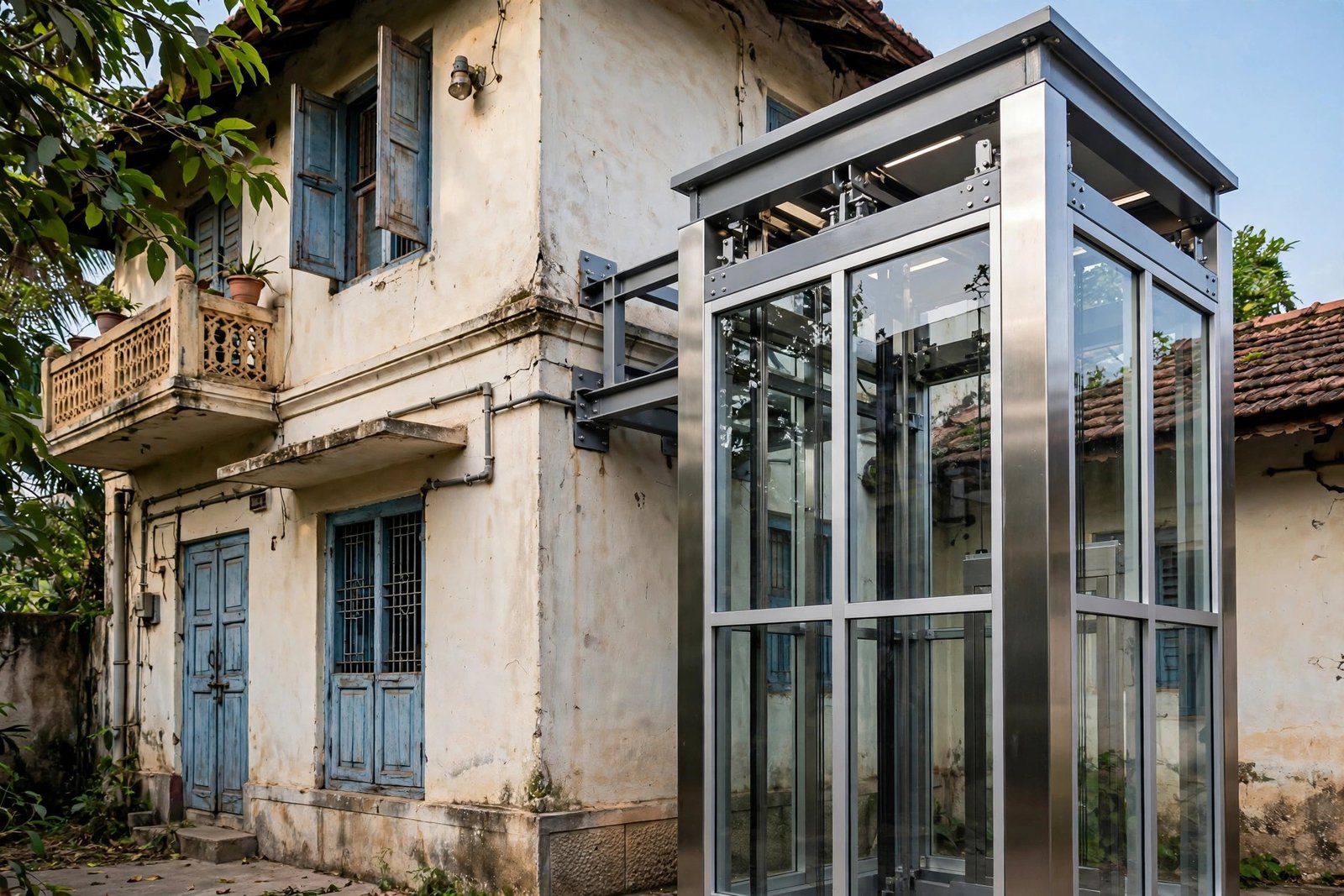

Tarika 2: Ghar ke bahar steel structure (bina tod-fod wala option)

Jab andar jagah hi na nikle — tab ye tarika kaam aata hai. Ghar ki bahari deewar ke saath MS (mild steel) ka structure khada kiya jata hai, usmein shaft banta hai, aur har floor par deewar mein door ki opening kaat kar lift se jod diya jata hai.

Iske fayde:

• Ghar ke andar zero tod-fod — rehte hue kaam hota hai, parivaar ko shift nahi hona padta
• Structure apni foundation par khada hota hai — purani building par load nahi padta
• Glass cladding ke saath ye ghar ko premium look deta hai — Bartand side ke kai gharon mein humne yehi lagaya hai

Dhyan rakhne wali baatein: Bahar structure ke liye zameen ka thoda hissa chahiye (setback area), aur monsoon mein Dhanbad ki baarish se bachane ke liye proper cladding aur drainage zaroori hai. Cost andar wale option se thodi zyada padti hai — steel structure ka kharcha alag se judta hai.

Tarika 3: Stair lift — jab shaft banana hi possible na ho

Kuch gharon mein na andar jagah nikalti hai, na bahar — ya budget shaft banane ka nahi hai. Aise mein stair lift best option hai: seedhi ke saath rail lagti hai, us par chair chalti hai. Koi shaft nahi, koi pit nahi, koi bada civil work nahi — 2-3 din mein lag jati hai.

Ye un buzurgo ke liye perfect hai jinko sirf floors ke beech aana-jaana hai, samaan uthana nahi. Iska poora price guide humne is blog mein diya hai — indicative range aur senior-citizen angle ke saath.

Pit aur headroom ka jugaad — purane gharon ka sabse bada sawaal

“Pit khodna padega? Hamare ghar mein to neeche paani hai!” — ye dar har customer ke mann mein hota hai. Sach ye hai:

Pit: Conventional lift ko 4-5 feet gehri pit chahiye hoti hai. Par purane gharon ke liye shallow-pit ya pitless hydraulic lifts aati hain — jinhe sirf 6-12 inch ki pit ya bilkul bhi pit nahi chahiye. Lift ka mechanism aisa design hota hai ki cabin zameen ke level par hi rukti hai.

Headroom: Upar cabin ke liye jagah (headroom) chahiye hoti hai. Purane gharon mein chhat neechi hoti hai — iske liye compact drive wali MRL lifts hain jinhe kam headroom mein fit kiya ja sakta hai, ya hydraulic lift jismein upar koi machine hi nahi hoti.

Machine room: Purane ghar mein alag machine room banane ki jagah kahan? Isliye retrofit mein hydraulic ya MRL technology prefer ki jati hai — dono mein bada machine room nahi chahiye. Machine chhote cabinet mein shaft ke paas hi lag jati hai.

Retrofit mein civil work — kya-kya hota hai, kitna time lagta hai

Retrofit ka civil work naye construction se alag hota hai — yahan todna bhi hai aur banana bhi. Aam taur par ye kaam hote hain:

• Shaft structure: RCC ya MS steel ka shaft — 2 se 4 hafte (design ke hisaab se)
• Landing openings: Har floor par door ke liye deewar kaatna — 2-3 din per floor
• Pit (agar chahiye): Khodna, waterproofing, drainage — 1 hafta
• Finishing: Shaft ki cladding, painting, landing ki flooring matching — 1-2 hafte

Total timeline: Site survey se lekar lift chalu hone tak aam taur par 8 se 14 hafte lagte hain — ismein lift manufacturing (6-8 hafte, jo civil work ke saath parallel chalti hai), installation (2-3 hafte), aur testing shamil hai. Bahar steel structure wale option mein 2-3 hafte extra jud jate hain.

Aur haan — rehte hue kaam hota hai. Sirf jis din landing opening kaatni ho, us floor par 1-2 din thoda shor-dhool hota hai. Baaki din normal zindagi chalti rehti hai.

Kharcha kitna aata hai — Sample breakdown (Dhanbad)

Retrofit mein lift unit ka kharcha to wahi hota hai jo naye ghar mein hota hai — farq sirf civil work mein padta hai. Indicative figures:

• Lift unit (2-3 person hydraulic, G+1/G+2): lagbhag ₹7–₹10 lakh (Sample)
• Retrofit civil work (shaft + openings + finishing): lagbhag ₹2–₹5 lakh extra (Sample) — ghar ki condition par depend karta hai
• External steel structure (Tarika 2): lagbhag ₹3–₹6 lakh extra (Sample)
• Electrical upgrade (load + wiring): lagbhag ₹50,000–₹1.5 lakh (Sample)

All-in indicative: Purane G+2 ghar mein 2-3 person lift lagbhag ₹10–₹16 lakh mein lag jati hai (Sample). Naye ghar se 20-30% zyada — par usmein ghar todne-banane ka pura kharcha shamil hai. *Sabhi figures Sample/indicative hain — final quotation free site survey ke baad.

Poora cost breakdown samajhne ke liye humara home lift price guide padhein — wahan teenon cost buckets detail mein samjhaye hain.

5 galtiyan jo log purane ghar mein lift lagate waqt karte hain

1. Bina structure check ke order de dena: Sabse badi galti. Purane ghar ki deewar ya slab lift ka load sah payegi ya nahi — ye survey mein clear hona chahiye. Hum har retrofit se pehle structure assessment karte hain; jo dealer ye step skip kare, usse savdhaan raho.

2. Sirf lift ka rate dekhna, civil work bhool jana: “₹9 lakh mein lift” sun kar khush ho jate hain — phir civil work mein ₹4 lakh aur nikal aata hai. Hamesha all-in quotation maango: unit + civil + electrical, teeno likhit mein.

3. Galat technology chun lena: Purane ghar mein conventional traction lift (badi pit + machine room wali) thop dena — jabki hydraulic ya MRL aadhe civil work mein kaam kar jati. Technology ghar ke hisaab se chuno, dealer ke stock ke hisaab se nahi.

4. Waterproofing par kanjoosi: Dhanbad mein monsoon mein pit mein paani bharna aam hai. Pit ki waterproofing aur sump pump par bachaya hua ₹20,000 baad mein ₹2 lakh ka nuksaan kar sakta hai. Is par humne monsoon care guide mein detail di hai.

5. AMC ko “baad mein dekhenge” kehna: Retrofit lift mein shuru ke 1-2 saal settling issues aate hain — naye structure ka thoda settlement, naye parts ka run-in. Is dauran AMC ka hona bahut zaroori hai. AMC charges ka poora hisaab yahan padhein.

Dhanbad mein retrofit ka asli scene — area-wise

Bartand–Govindpur belt: Yahan 20-30 saal purane independent makaan zyada hain — aksar bada aangan ya bahar jagah mil jati hai. External steel structure wala option yahan sabse popular hai.

Bank More–City Centre: Purani commercial-cum-residential buildings — yahan staircase well mein compact lift ya bahar shaft, dono chalte hain. Mixed-use building mein lift se property ki value turant badhti hai.

Jharia–Katras: Purane mining-town ke ghar, aksar load-bearing structure. Yahan structure assessment sabse zyada zaroori hai — par aksar zameen par jagah mil jati hai, to external option aasaan padta hai.

Saraidhela–Memco More: Relatively naye par 15-20 saal purane G+2 ghar — yahan staircase well mein MRL lift sabse saaf-saaf baith jati hai.

Ranchi aur Bokaro mein bhi hum retrofit surveys karte hain — purane shahar ke ilakon mein situation Dhanbad jaisi hi hai.

FAQs — Purane Ghar me Lift Retrofit

Q1. Kya 30 saal purane ghar mein lift lag sakti hai?
A. Haan, agar structure majboot hai. Site survey mein hum load-bearing capacity check karte hain — kamzor structure ho to external steel structure (apni foundation par) lagaya jata hai, building par load nahi padta.

Q2. Purane ghar mein lift lagane mein kitna kharcha aata hai?
A. Indicative: G+2 ghar mein 2-3 person lift all-in lagbhag ₹10–₹16 lakh (Sample) — ismein lift unit + retrofit civil work + electrical shamil hai. Final quotation free site survey ke baad.

Q3. Kya lift lagate waqt ghar khaali karna padega?
A. Nahi. Kaam rehte hue hota hai — sirf landing opening kaatne wale 1-2 din thoda shor hota hai. External structure wale option mein to andar koi kaam hi nahi hota.

Q4. Pit khodna zaroori hai kya? Neeche paani hai to?
A. Zaroori nahi. Shallow-pit/pitless hydraulic lifts mein 6-12 inch ya zero pit chalti hai. Paani wali jagah par waterproofing + sump pump lagaya jata hai.

Q5. Purane ghar mein kaunsi lift technology best hai?
A. Aam taur par hydraulic ya MRL — dono mein badi pit ya machine room nahi chahiye, jo purane gharon ki sabse badi problem solve karta hai.

Q6. Poora kaam kitne din mein ho jayega?
A. Survey se chalu hone tak aam taur par 8-14 hafte. Lift manufacturing civil work ke saath parallel chalti hai, isliye time bachta hai.

Free site survey — 30 minute mein saaf jawab

Purane ghar mein lift ka sabse sahi jawab aapke ghar ko dekh kar hi mil sakta hai — phone par andaza lagana dono taraf se galat hoga. Hum Dhanbad mein free site survey karte hain: structure check, jagah ka measurement, 3 options ke saath likhit quotation.

Call ya WhatsApp karein: +91 95349 06139 — Cmax Engineering, Dhanbad. Ranchi aur Bokaro mein bhi survey available hai.
